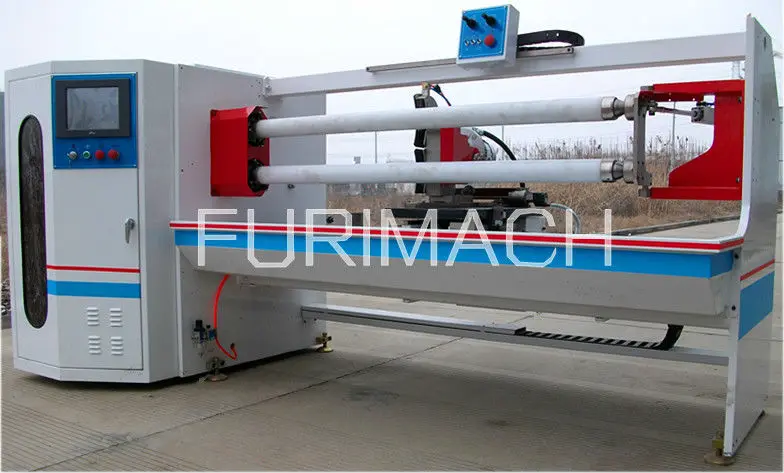

Suitable for cutting bopp, pvc, pe, masking tape, double sided tape, cloth tape, industrial tape, protection film, etc.
1. Main driving part
Siemens AC motor with inverter is employed.
2. Central control unit
Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.
3. Operating panel
All functions are operated on the 10" LCD touch panel.
4. Motor control system
The central control system is PLC programmable controller.
5. Cutting positioning system:
Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
6. Blade feeding positioning system
Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.
7. Auto angle adjustment of circular blade
Mitsubishi servo motoris used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).
8. Quick shaft change system:
Three kinds of shafts are available and quick change of shafts is applied for different materials.
1. Other size cutting shaft
It can be made as per the required core I.D.
2. Cutting supporter
For supporting log roll when cutting core below 38mm.
3. Safety cover
To protect operator during the production which is compliant to the CE regulation.
Main Technical Parameters:
Max. Cutting O.D.
Min. Cutting width
Inner core I.D.
1. Warranty for machines is 12 months and lifetime maintence.2. A promptly reply within 24 hours.3. Free usage training before delivering machines in factory.
We also have other Single Shaft Auto Roll Cutting Machine for bigger diameter:FR-1300/1600A,FR-1300/1600C and FR-1660 and four shafts cutting machine FD-1300/FD1600 for higher efficiency.
