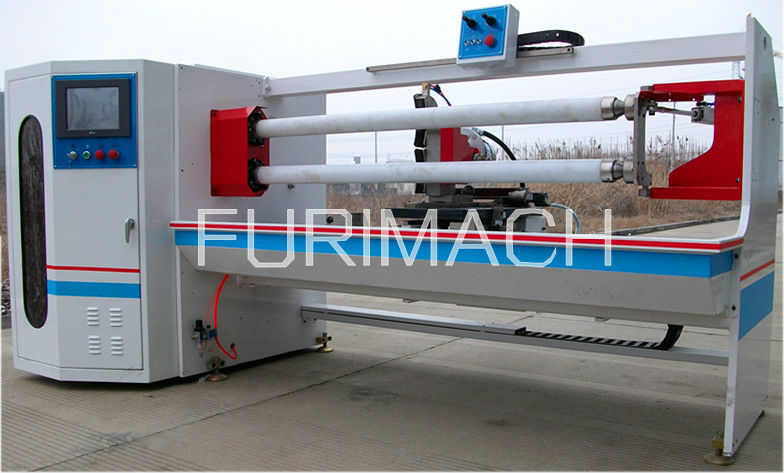

adhesive tape converting machine/adhesive tape slicer machine

FOB Reference Price:Get Latest Price
US $15,000-32,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Set/Sets per Month
Port:
FOB SHANGHAI
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Chemical, Medical
Packaging Type:
Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380
Power:
7.5kw
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
FURI
Model Number:
FR-1300B
Weight:
1500KG
Dimension(L*W*H):
2850*1700*1500mm
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
name:
adhesive tape converting machine/adhesive tape slicer machine
servo motor:
Japan Mutsuibishi
memory size:
20
cooling system:
auto water supply
bearing:
NSK
plc:
yes
sensor:
AIRTAC
button:
France Schneider
warranty:
12months
Packaging & Delivery
Packaging Details
wooden case


adhesive tape converting machine/adhesive tape slicer machine




Application

Suitable for cutting bopp, pvc, pe, masking tape, double sided tape, cloth tape, industrial tape, protection film, etc.



1. Main driving part

Siemens AC motor with inverter is employed.

2. Central control unit

Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

3. Operating panel

All functions are operated on the 10" LCD touch panel.

4. Motor control system

The central control system is PLC programmable controller.

5. Cutting positioning system:

Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding positioning system

Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

7. Auto angle adjustment of circular blade

Mitsubishi servo motoris used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

8. Quick shaft change system:

Three kinds of shafts are available and quick change of shafts is applied for different materials.

Optional Parts:

1. Other size cutting shaft

It can be made as per the required core I.D.

2. Cutting supporter

For supporting log roll when cutting core below 38mm.

3. Safety cover

To protect operator during the production which is compliant to the CE regulation.



Main Technical Parameters:

Machine width

1.3M 1.6M

Cutting precision

+/-0.1mm

Max. Cutting O.D.

150mm

Min. Cutting width

1mm

Inner core I.D.

1"-3"



Cutting Pics:



After-sale:



1. Warranty for machines is 12 months and lifetime maintence.
2. A promptly reply within 24 hours.
3. Free usage training before delivering machines in factory.





 We also have other Auto Roll Cutting  Machine for bigger diameter:FR-1300/1600A,FR-1300/1600C ,FD-1300 (four shafts) and FR-1660
