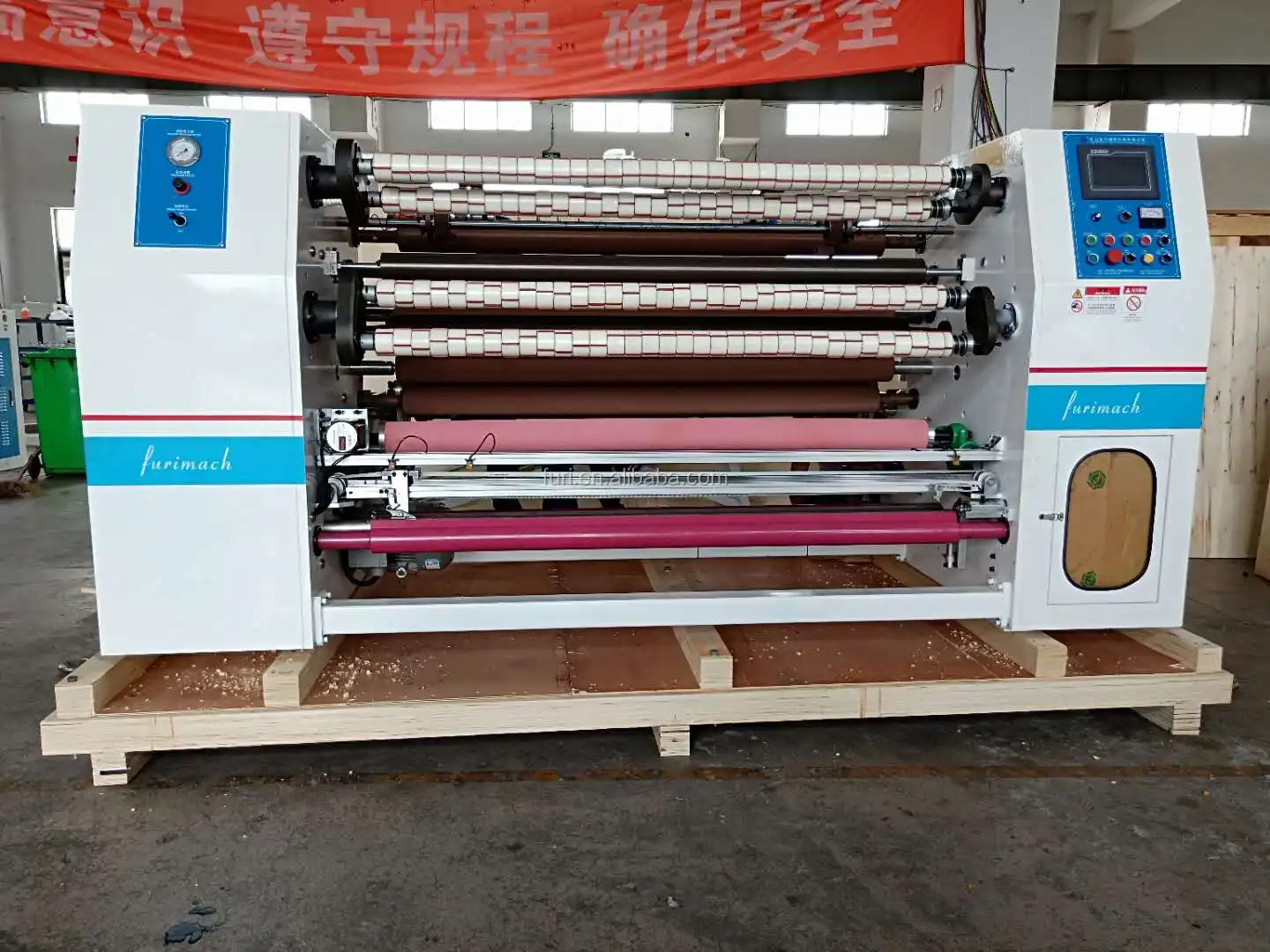

Tape Rewinding Slitting Machine With Edge Trimming Device

FOB Reference Price:Get Latest Price
$5,000.00 - $12,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FR-202
Power(W):
4.5KW
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder
Dimension(L*W*H):
2220*830*1380mm
Weight:
2800KG
Warranty:
12months, 12month
Condition:
New
Computerized:
Yes
Place of Origin:
Jiangsu, China
Brand Name:
FURIMACH
Voltage:
380V
Certification:
ISO9001:2008,CE
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Tape Rewinding Slitting Machine
Max.cutting width:
1600mm
Max.rewind O.D:
300mm
Driven Type:
Electric
Packaging Type:
Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Application:
Machinery & Hardware, scotch tape,bopp tape ,gum tape
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
Flexible wrapping and seaworthy wooden case
Port
Shanghai
Video Description
Product Description

Product Application

Suitable for slitting BOPP adhesive tape/cellophane tape.

Main Features

1)Full-automatic four-shaft exchange is adopted and the efficiency is improved.

2) Continuously variable speed regulating of inverter and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed.

3) The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

4)The banana roller is used to eliminate tape wrinkling during extension and feeding.

5) Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
