Single-Shaft Automatic Finished Tape Cutting Machine/film cutter machine

FOB Reference Price:Get Latest Price
$15,000.00 - $32,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FR-1300A
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Commodity, Machinery & Hardware, Textiles, BOPP/PVC/PE/masking paper tape/double-sided tape duct tape
Packaging Material:
Wood
Type:
Other, Other
Condition:
New
Packaging Type:
Case, Film
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
7KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
FURI
Weight:
1600KG
Dimension(L*W*H):
2950*1250*1300mm
Certification:
CE, ISO9001:2008
circular blade:
Korea brand
PLC:
yes
Shaft:
single shafts
servo motor:
Japan Mitsubishi
warranty:
12months
surface treatment:
yes
dust prevention:
yes
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Flexible wrapping and seaworthy wooden case
Port
Shanghai
FR-1300A

Product Application

Suitable for cutting BOPP, PVC, PE, masking tape, double sided tape, kraft paper tape, foam tape, duct tape, industrial tape, protection film, etc.

Feature

1)  Main driving part Taiwan AC motor with inverter is employed.


2. Central control unit Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

3. Operating panel All functions are operated on the 10" LCD touch panel.

4. Motor control system The central control system is PLC programmable controller.

5. Cutting positioning system: Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding positioning system Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.

7. Auto angle adjustment of circular blade Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

8. Quick shaft change system: Three kinds of shafts are available and quick change of shafts is applied for different materials.
Certifications

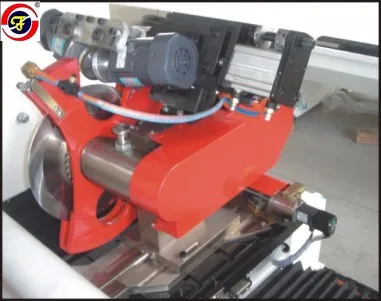

Detailed Images

Selected accessories

Name: Sharpening device

Brand: Dong Li

Original: Taiwan

Purpose:Grinding blade



Machine  Part

Name: safety guard
Purpose:The operator is not cut during the operation of the machine.

Spare parts

Name: Koeran  knife
Brand: Koeran
Original: Koeran

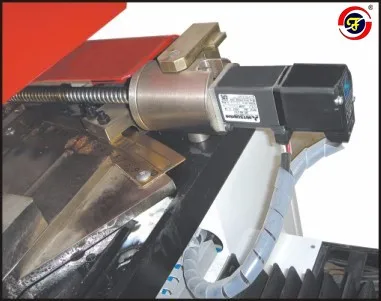

Name: Angle adjuster
Purpose:Adjust the angle to meet the cutting requirements of various materials.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
14000(L) * 2000(W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Contact us


Head Office:No.2258,West Cheng Road,Bacheng Town,Kunshan City

Taicang Factory:Shuanghu Road,Shuangfeng Town,Taicang city

Wuhu Factory:Building 01,NO.1399,Weisan Road,New Wuhu EDZ,Wanzhi Town,Wuhu

Office:Tianjin,Chongqing,Yiwu,Dongguan

Sales: 0512-55183516*601
Fax: 0512-55183516
Website: http://www.furimach.com
